5 / 1 Differential Air Motor 13 - 16 Gallon Pneumatic Oil Pump Double Action

5 / 1 Differential Air Motor 13 - 16 Gallon Pneumatic Oil Pump Double Action

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 1701051

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 4,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Oil Pump Drum Application: 50-60L / 13-16gallon
Pressure Ratio: 5:1 Oil Application: Motor Oil; Synthetic Oil; Hydrauic Oil; Gear Oil
Oil Type: SAE 240 Max. Fluid Pressure: 40bar / 580psi
High Light:

air driven oil pump

,

air operated oil pump

Product Description

5:1 Differential Air Motor 50 Liter Pneumatic Oil Pump for Double Action



5:1 Air operated oil transfer pump



Specifications:

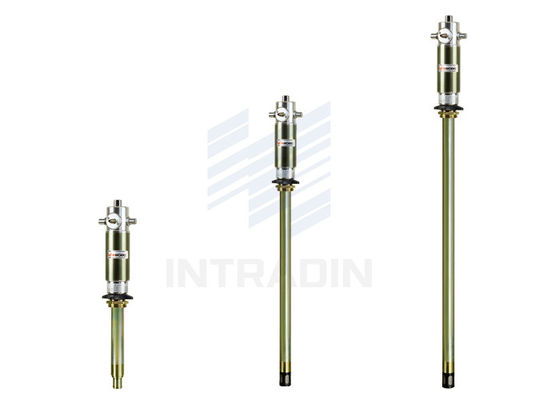

Item No. 1701051 1701052 1701053
Drum application  Wall mounted 50-60L / 13-16gallon 180-220L / 48-58gallon
Pressure ratio 5:1 5:1 5:1
Air inlet pressure 5-8bar / 70-115psi 5-8bar / 70-115psi 5-8bar / 70-115psi
Max. fluid pressure  40bar / 580psi 40bar / 580psi 40bar / 580psi
Air motor effective diameter 63mm / 2.49" 63mm / 2.49" 63mm / 2.49"
Air consumption (min) @ 8bar 125L  @ 8bar 125L @ 8bar 125L
@ 115psi  4.5CFM @ 115psi  4.5CFM @ 115psi  4.5CFM
Max.free flow rate (min) 14L / 3.7gpm 14L / 3.7gpm 14L  / 3.7gpm
Suction tube diameter 42mm / 1.65" 42mm / 1.65" 42mm / 1.65"
Suction tube length 270mm / 10.6" 730mm / 28.7" 940mm / 37"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 1/2" M 1/2" M 1/2" M
Weight 5kgs / 11lbs 5.5kgs / 12lbs 6kgs / 13lbs
Package size 13x13x62cm 13x13x108cm 13x13x128cm





Description:

•  Air operated for integration into dispensing system
•  Smart design with fewer parts for less pump wear & tear
•  Differential air motor ensures smooth pumping
•  Typical fluids handled include motor oil, synthetic oil,
hydraulic oil, gear oil and automatic transmission fluid
•  Double action
•  Suitable for use of oil to SAE240
•  Supplied with adjustable 2'' bung adapter
