48 - 58 Gallon Heavy Duty Air Operated Pneumatic Oil Pump High Volume
Product Details:
| Place of Origin: | China |
| Brand Name: | Lubeworks |
| Model Number: | 17130561 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1 piece in carton and pallet |
| Delivery Time: | 40 working days after received your payment |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 4,000pcs per month |
|
Detail Information |
|||
| Product Name: | Oil Pump | Drum Application: | 180-220L / 48-58gallon |
|---|---|---|---|
| Pressure Ratio: | 5:1 | Air Motor Diameter: | 76mm / 3" |
| Suction Tube Lenght: | 270mm / 11" | Oil Outlet Connection: | 3/4" Female |
| High Light: | air operated oil pump,pneumatic drum pump |
||
Product Description

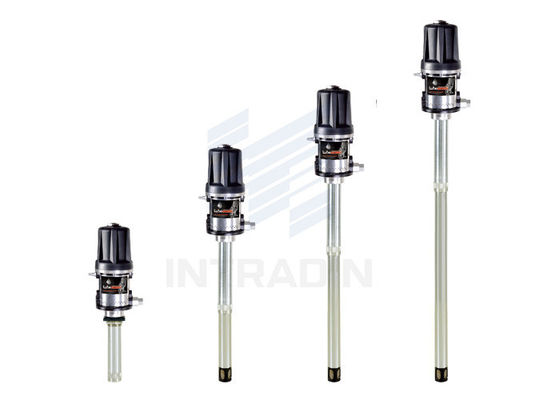

5:1 Air Operated Pneumatic Oil Pump For High Volume And Long Distance Application
Description:
- The 5:1 is perfect for fluid oil transfer in high volume and longer distance applications such as truck shop service fleet facilities and in-plant applications
- Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life
- Few moving parts in the air motor assembly means less downtime and low repair cost
- Large air porting design provides efficient use of compressed air supply for continuous pump operation without icing
- Suitable for use of oil to SAE240
Specifications:
| Item No. | 17130501/17130503 | 17130531/17130533 | 17130561/17130563 | 17130571/17130573 |
| Drum application | Pail | 50-60L / 13-16gallon | 180-220L / 48-58gallon | 1040L / 275gallon |
| Pressure ratio | 5:1 | 5:1 | 5:1 | 5:1 |
| Air inlet pressure | 5-12bar / 70-180psi | 5-12bar / 70-180psi | 5-12bar / 70-180psi | 5-12bar / 70-180psi |
| Max. fluid pressure | 60bar / 870psi | 60bar / 870psi | 60bar / 870psi | 60bar / 870psi |
| Air motor effective diameter | 76mm / 3" | 76mm / 3" | 76mm / 3" | 76mm / 3" |
| Air consumption (min) | @ 8bar 600L | @ 8bar 600L | @ 8bar 600L | @ 8bar 600L |
| @ 115psi / 21.6CFM | @ 115psi / 21.6CFM | @ 115psi / 21.6CFM | @ 115psi / 21.6CFM | |
| Max.free flow rate (min) | 40L / 11gallon | 40L / 11gallon | 40L / 11gallon | 40L / 11gallon |
| Suction tube diameter | 54mm / 2.1" | 54mm / 2.1" | 54mm / 2.1" | 54mm / 2.1" |
| Suction tube length | 270mm / 11" | 730mm / 29" | 940mm / 37" | 1190mm / 46" |
| Air inlet connection | 1/4" quick plug | 1/4" quick plug | 1/4" quick plug | 1/4" quick plug |
| 1/4" NPT Female | 1/4" NPT Female | 1/4" NPT Female | 1/4" NPT Female | |
| Oil outlet connection | 3/4"F | 3/4"F | 3/4"F | 3/4"F |
| Accessory | 3/4"M - 1/2"F reducer | 3/4"M - 1/2"F reducer | 3/4"M - 1/2"F reducer | 3/4"M - 1/2"F reducer |
| Weight | 7.8kgs / 17lbs | 9.7kgs / 21lbs | 10.5kgs / 23lbs | 11.5kgs / 25.3lbs |
| Package size | 72x25x19cm | 118x25x19cm | 139x25x19cm | 165x25x19cm |
