Double Action Pneumatic 1:1 High Flow Rate Transfer Pump With 32 Liter

Double Action Pneumatic 1:1 High Flow Rate Transfer Pump With 32 Liter

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 1701004

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 4,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Oil Pump Drum Application: Wall Mounted
Pressure Ratio: 1:1 Flow Rate: 32L / 8.5gallon
Bung Adapter: 2" Max. Fluid Pressure: 8bar / 115psi
High Light:

air operated oil pump

,

pneumatic drum pump

Product Description

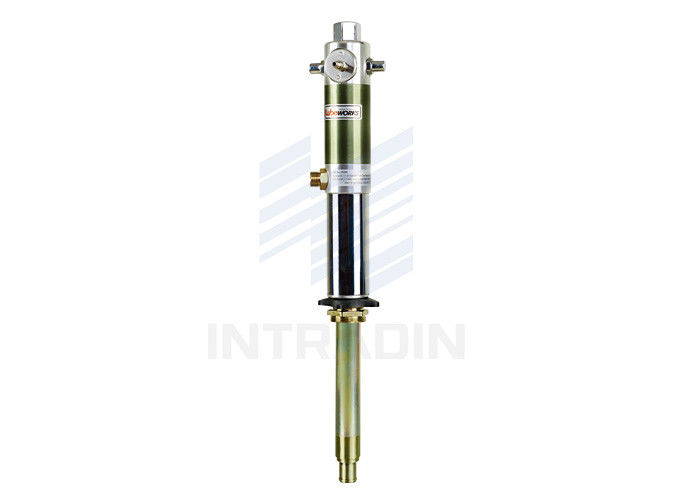

1:1 High Flow Rate Pneumatic Oil Pump With 32 Liter Maximum Free Flow Rate



1:1 High Flow Rate transfer pump



Description:



•  Air Operated for integration into transfer system
•  Typical fluids handled include motor oil, synthetic oil hydraulic
oil, gear oil and automatic transmission fluid
•  Flow rate up to 32L/m for oil of low and medium viscosity at
short and medium distance
•  Double action
•  Suitable for use of oil to SAE120
•  Supplied with adjustable 2'' bung adapter



Specifications:

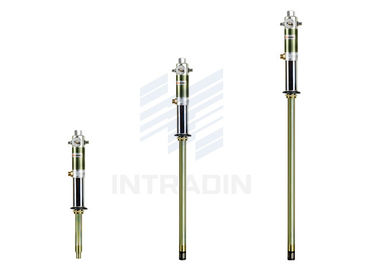

Item No. 1701004 1701005 1701006
Drum application  Wall mounted 50-60L / 13-16gallon 180-220L / 48-58gallon
Pressure ratio 1:1 1:1 1:1
Air inlet pressure 5-8bar / 70-115psi 5-8bar / 70-115psi 5-8bar / 70-115psi
Max. fluid pressure  8bar / 115psi 8bar / 115psi 8bar / 115psi
Air motor effective diameter 63mm / 2.49" 63mm / 2.49" 63mm / 2.49"
Air consumption (min) @ 8bar 130L @ 8bar 130L  @ 8bar 130L
@ 115psi  4.7CFM @ 115psi  4.7CFM @ 115psi  4.7CFM
Max.free flow rate (min) 32L  / 8.5gpm  32L  / 8.5gpm  32L  / 8.5gpm
Suction tube diameter 42mm / 1.65" 42mm / 1.65" 42mm / 1.65"
Suction tube length 270mm / 10.6" 730mm / 28.7" 940mm / 37"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 3/4" M 3/4" M 3/4" M
Weight 5kgs / 11lbs 5.5kgs / 12lbs 6kgs / 13lbs
Package size 13x13x81cm 13x13x128cm 13x13x148cm
