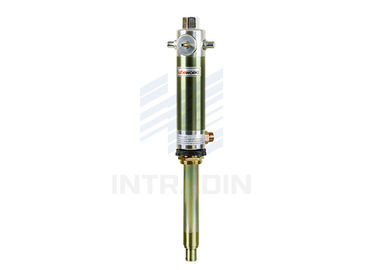

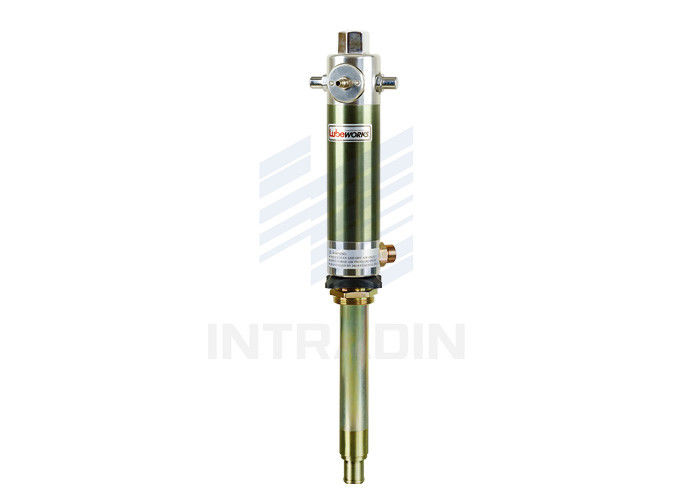

25 Liter Wall Mounted Pneumatic Oil Pump With 5:1 Pressure Ratio
Product Details:
| Place of Origin: | China |
| Brand Name: | Lubeworks |
| Model Number: | 1701054 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1 piece in carton and pallet |
| Delivery Time: | 40 working days after received your payment |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 4,000pcs per month |
|
Detail Information |
|||
| Product Name: | Oil Pump | Drum Application: | Wall Mounted |
|---|---|---|---|
| Pressure Ratio: | 5:1 | Flow Rate: | 25L / 6.6gallon |
| Suction Tube Diameter: | 42mm / 1.65" | Suction Tube Length: | 270mm /10.6" |
| High Light: | 25 Liter Pneumatic Oil Pump,Wall Mounted Pneumatic Oil Pump,Pneumatic Oil Transfer Pump |
||
Product Description
25 Liter Maximum Free Flow Rate Pneumatic Oil Pump With 5:1 Pressure Ratio
5:1 High Flow Rate transfer pump
Description:
| • Air Operated for integration into transfer system | ||
| • Typical fluids handled include motor oil, synthetic oil hydraulic | ||
| oil, gear oil and automatic transmission fluid | ||
| • Flow rate up to 25L/m for oil of low and medium viscosity at | ||
| short and medium distance | ||
| • Double action | ||
| • Suitable for use of oil to SAE240 | ||
| • Supplied with adjustable 2'' bung adapter | ||
Specifications:
| Item No. | 1701054 | 1701055 | 1701056 |
| Drum application | Wall mounted | 50-60L / 13-16gallon | 180-220L / 48-58gallon |
| Pressure ratio | 5:1 | 5:1 | 5:1 |
| Air inlet pressure | 5-8bar / 70-115psi | 5-8bar / 70-115psi | 5-8bar / 70-115psi |
| Max. fluid pressure | 40bar / 580psi | 40bar / 580psi | 40bar / 580psi |
| Air motor effective diameter | 63mm / 2.49" | 63mm / 2.49" | 63mm / 2.49" |
| Air consumption (min) | @ 8bar 180L | @ 8bar 180L | @ 8bar 180L |
| @ 115psi 6.5CFM | @ 115psi 6.5CFM | @ 115psi 6.5CFM | |
| Max.free flow rate (min) | 25L / 6.6gpm | 25L / 6.6gpm | 25L / 6.6gpm |
| Suction tube diameter | 42mm / 1.65" | 42mm / 1.65" | 42mm / 1.65" |
| Suction tube length | 270mm / 10.6" | 730mm / 28.7" | 940mm / 37" |
| Air inlet connection | 1/4" quick plug | 1/4" quick plug | 1/4" quick plug |
| 1/4" NPT Female | 1/4" NPT Female | 1/4" NPT Female | |
| Oil outlet connection | 3/4" M | 3/4" M | 3/4" M |
| Weight | 5kgs / 11lbs | 5.5kgs / 12lbs | 6kgs / 13lbs |
| Package size | 13x13x73cm | 13x13x117cm | 13x13x137cm |
