Vertical 8 Bar 100L Air Powered Fluid Extractor Pneumatic Oil Pump For Drum
Product Details:
| Place of Origin: | China |
| Brand Name: | Lubeworks |
| Model Number: | 1701001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1 piece in carton and pallet |
| Delivery Time: | 40 working days after received your payment |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 4,000pcs per month |
|
Detail Information |
|||
| Product Name: | Oil Pump | Drum Application: | Wall Mounted |
|---|---|---|---|
| Pressure Ratio: | 1:1 | Oil Outlet Connection: | 1/2”M |
| Max.fluid Pressure: | 8bar/115psi | Max.free Flow Rate(min): | 18L/4.8gallon |
| High Light: | 100L air powered fluid extractor,8 bar air powered fluid extractor,Vertical pneumatic oil pump for drum |
||
Product Description
Smart Vertical Wall Mounted Pneumatic Oil Pump 8 bar 100L
1:1 Air operated oil transfer pump
Description:
• Air operated for integration into transfer system
• Smart design with fewer parts for less pump wear and tear
• Differential air motor ensures smooth pumping
• Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic
transmission fluid
• Suitable for use of oil to SAE80
• Supplied with adjustable 2” bung adapter
Specifications:
|

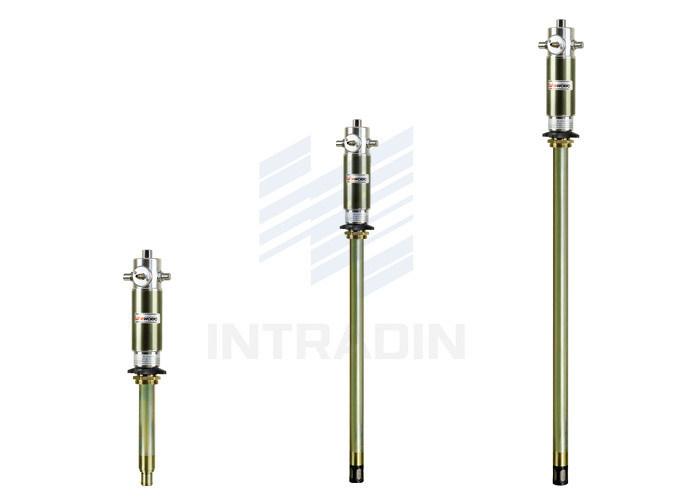

Item No. |
1701001 |
1701002 |
1701003 |
|
Drum application |
Wall mounted |
50-60L / 13-16gallon |
180-220L / 48-58gallon |
|
Pressure ratio |
1:1 |
1:1 |
1:1 |
|
Air inlet pressure |
5-8bar / 70-115psi |
5-8bar / 70-115psi |
5-8 bar / 70-115 psi |
|
Max. fluid pressure |
8bar / 115psi |
8bar / 115psi |
8 bar / 115psi |
|
Air motor effective diameter |
63mm / 2.49" |
63mm / 2.49" |
63mm / 2.49" |
|
Air consumption (min) |
@ 8bar 100L |
@ 8bar 100L |
@ 8bar 100L |
|
@ 115psi 3.6CFM |
@ 115psi 3.6CFM |
@ 115psi 3.6CFM |
|
|
Max.free flow rate (min) |
18L / 4.8gallon |
18 L / 4.8gallon |
18L / 4.8gallon |
|
Suction tube diameter |
42mm / 1.65" |
42 mm / 1.65" |
42mm / 1.65" |
|
Suction tube length |
270mm / 10.6" |
730 mm / 28.7" |
940mm / 37" |
|
Air inlet connection |
1/4" quick plug |
1/4" quick plug |
1/4" quick plug |
|
1/4" NPT Female |
1/4" NPT Female |
1/4" NPT Female |
|
|
Oil outlet connection |
1/2" M |
1/2" M |
1/2" M |
|
Weight |
5kgs / 11lbs |
5.5kgs / 12lbs |
6kgs / 13lbs |
|
Package size |
13x13x73cm |
116x13x13cm |
13x13x137cm |
