• Small Electric Diesel Transfer Pump 12V Motor Enclosed , 30 Minutes Duty Cycle
  • Small Electric Diesel Transfer Pump 12V Motor Enclosed , 30 Minutes Duty Cycle
Small Electric Diesel Transfer Pump 12V Motor Enclosed , 30 Minutes Duty Cycle

Small Electric Diesel Transfer Pump 12V Motor Enclosed , 30 Minutes Duty Cycle

Product Details:

Place of Origin: China
Brand Name: Fuelworks
Certification: CE
Model Number: 17530560

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: 1 carton and then pallet
Delivery Time: 40 working days
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: DC Diesel Pump Pump Rate: 15GPM / 57LPM
Voltage: 12V Current: 35A
Suction Height: 2M / 6.5FT Max.Pressure: 17psi / 1.2bar
High Light:

electric diesel fuel transfer pump

,

12volt diesel transfer pump

Product Description



30 Minutes Duty Cycle Electric Diesel Transfer Pump With Electric Motor Enclosed



Specifications:

Item No.

Flow Rate

Voltage

Current

Suction Height

Max. Pressure

RPM

Inlet /Outlet

Package

Weight

17510400

10GPM / 40LPM

12V

24A

2M / 6.5FT

17PSI / 1.2BAR

3800

3/4"

Dimension

5kgs

17510401

10GPM / 40LPM

24V

13A

2M / 6.5FT

17PSI / 1.2BAR

3800

3/4"

24x16x21cm

5kgs

17510404

10GPM / 40LPM

12V

24A

2M / 6.5FT

17PSI / 1.2BAR

3800

3/4"

24x16x21cm

5kgs

17510405

10GPM / 40LPM

24V

13A

2M / 6.5FT

17PSI / 1.2BAR

3800

3/4"

24x16x21cm

5kgs

17530560

15GPM / 57LPM

12V

35A

2M / 6.5FT

17PSI / 1.2BAR

2800

1"

24x16x21cm

8kgs

17530561

15GPM / 57LPM

24V

30A

2M / 6.5FT

17PSI / 1.2BAR

2800

1"

24x34x24cm

8kgs

17530700

9GPM / 35LPM

12V

30A

2M / 6.5FT

22PSI / 1.5BAR

1800/3600

1"

24x34x24cm

8kgs





Description:

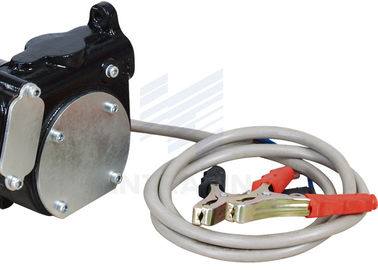

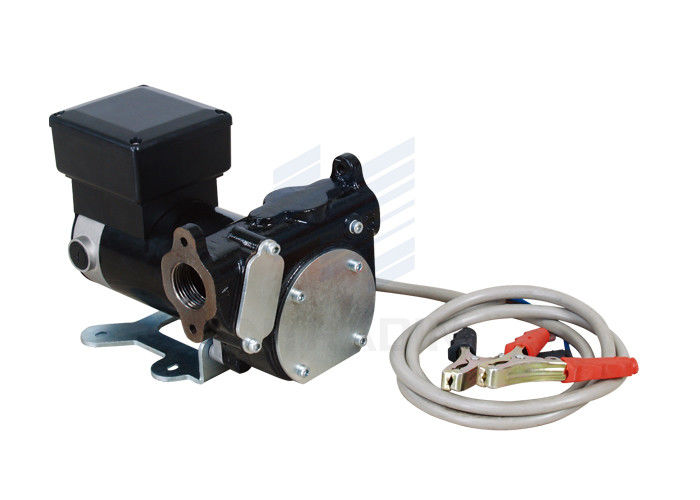

•  Self priming diesel transfer pumps with 12V or 24V DC motor

•  Electric motor is closed type in protection class IP55



•  Bypass valve built into pump casing



•  Carrying handle available on 10GPM/40LPM pumps



•  The model 17530700 can be used with both tension



•  Duty cycle: 30 min.



•  Includes 2m/6.5ft. cable with alligator clamps
