• Portable Die - cast Aluminum Electric Diesel Transfer Pump 550W AC Gear Type  IP55

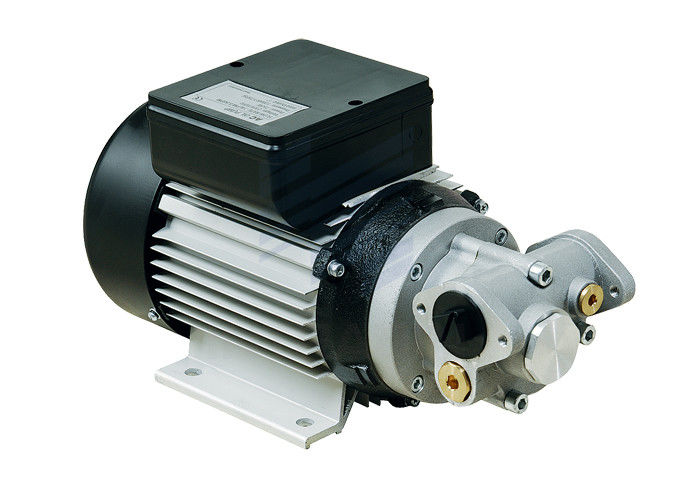

Portable Die - cast Aluminum Electric Diesel Transfer Pump 550W AC Gear Type  IP55

Portable Die - cast Aluminum Electric Diesel Transfer Pump 550W AC Gear Type IP55

Product Details:

Place of Origin: China
Brand Name: Fuelworks
Certification: CE
Model Number: 17320100

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: 1 carton and then pallet
Delivery Time: 40 working days
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: AC Gear Type Oil Pump Pump Rate: 11Q / 10LPM
Suction Height: 2M / 6.5FT Power: 550W
Protection Type: IP 55 Class Inlet / Outlet: 1"
High Light:

electric diesel fuel transfer pump

,

small diesel transfer pump

Product Description



550W AC Gear Type Electric Diesel Transfer Pump With IP55 Motor Protection Class



Specifications:

Item No. Flow Rate Voltage  Power Max. Pressure Inlet / Outlet Package Dimension Weight
17320100 11Q / 10LPM 120V 550W 175PSI / 12BAR 1" 43x23x30cm 14kgs
17320101 11Q / 10LPM 120V 750W 360PSI / 25BAR 1" 43x23x30cm 14kgs
17320180 18Q / 17LPM 120V 900W 175PSI / 12BAR 1" 43x23x30cm 14kgs
17320501 52Q / 50LPM 120V 1500W 145PSI / 10BAR 1" 42x26x32cm 22kgs
17320090 10Q / 9LPM 230V 550W 175PSI / 12BAR 1" 43x23x30cm 14kgs
17320091 10Q / 9LPM 230V 750W 360PSI / 25BAR 1" 43x23x30cm 14kgs
17320140 15Q / 14LPM 230V 750W 175PSI / 12BAR 1" 43x23x30cm 14kgs
17320400 42Q / 40LPM 230V 1100W 145PSI / 10BAR 1" 42x26x32cm 22kgs
17320401 42Q / 40LPM 380V 1100W 145PSI / 10BAR 1" 42x26x32cm 22kgs



Description:

•  Internal gear electric pumps for the various requirements of pumping oils and lubricants
•  Motor: IP55 protection class
•  Die-cast aluminum pump body, Sintered steel gears
•  By-pass integrated into the pump body
•  Viscosity up to 10,000 SUS (Saybolt Universal
   Second)/2000Cst
•  Suction height: 2m/6.5ft.
