Product Details:
|
Product Name: | Digital Oil Meter | Inlet Connection: | 1/2" NPT |
---|---|---|---|
Power Source: | ER 14250 3.6V | Fluid Range: | 1-12gallon/min |
Precision: | ±0.5% | Pressure Range: | 7-1500psi |
High Light: | digital oil flow meter,fuel oil flow meter |

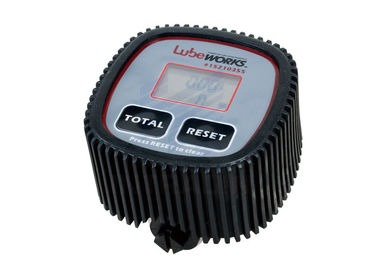

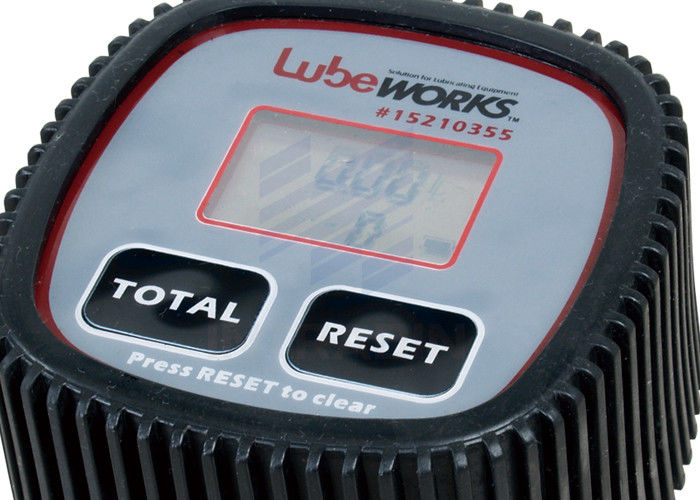

Rugged Design 45 Liter Digital Oil Meter Idea For Use In Harsh Environments
Description:
45L/12GAL. DIGITAL OIL METER | ||
Perfect for dispensing and metering oil in harsh environments | ||
when high flow rates are required | ||
• High-flow capability provides up to 45lpm / 12gmp | ||
• Rugged design ideal for use in harsh environments | ||
• Rubber protect, shatter proof |
Specifications:
Item No. | 15230451 | 15230452 |
Inlet connection | 1/2"BSP | 1/2"NPT |
Fluid range | 1-45L/min | 1-12gallon/min |
Pressure range | 0.5-100bar | 7-1500psi |
Precision | ±0.5% | ±0.5% |
Temperature | Min -10˚C,max +60˚C | Min -10˚C,max +60˚C |
Power surce | ER 14250 3.6V | ER 14250 3.6V |
Weight | 1kg / 2.2lbs | 1kg / 2.2lbs |
Package size | 14x11x11cm | 14x11x11cm |
