High Performance  4 - digital Mechanical Fuel Flow Meter 50psi 3.5BAR

High Performance 4 - digital Mechanical Fuel Flow Meter 50psi 3.5BAR

Product Details:

Place of Origin: China
Brand Name: Fuelworks
Model Number: 15111200

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: 1 carton and then pallet
Delivery Time: 40 working days
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Mechanical Fuel Flow Meter Working Pressure: 50psi / 3.5bar
Flow Rate: 5-32GPM / 20-120LPM Inlet: 1"
Outlet: 1" Readout: 4 Digit Subtotals
High Light:

fuel oil flow meter

,

digital fuel flow meter

Product Description

50psi Maximum Pressure Mechanical Fuel Flow Meter



Specifications:





Item No. Flow Rate Max. Pressure Inlet / Oulet Package Dimension Weight
15111200 5-32GPM / 20-120LPM 50PSI / 3.5BAR 1" 22.5x16.5x15.5cm 2kgs



Description:

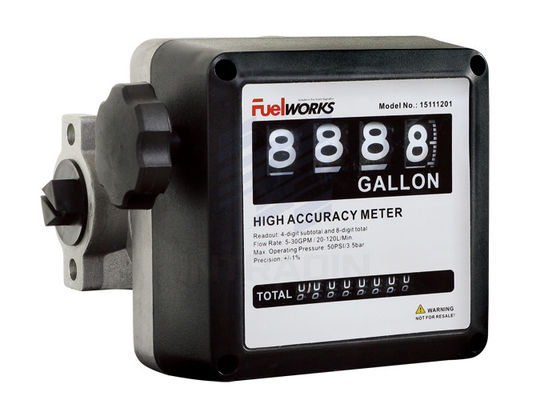

Mechanical Fuel Meter
•  Reliable, easy to install and simple to calibrate in the field
•  Aluminium metering chamber with polybutylene nutating disk
•  Max. operating pressure: 50PSI /3.5BAR;
•  Bursting pressure: 400PSI/28BAR
•  Readout: 4-digit subtotals, 8-digital totals

  Subtotals can be set to zero, total readouts cannot



Oval Gear Inline  Meters
•  Inline meters for connection to external receiver
•  Body with aluminum measuring chamber
•  Display is optional
•  Low battery indication
•  Different unit of measurement setting option
•  Length of cord: Up to 50ft./15M
