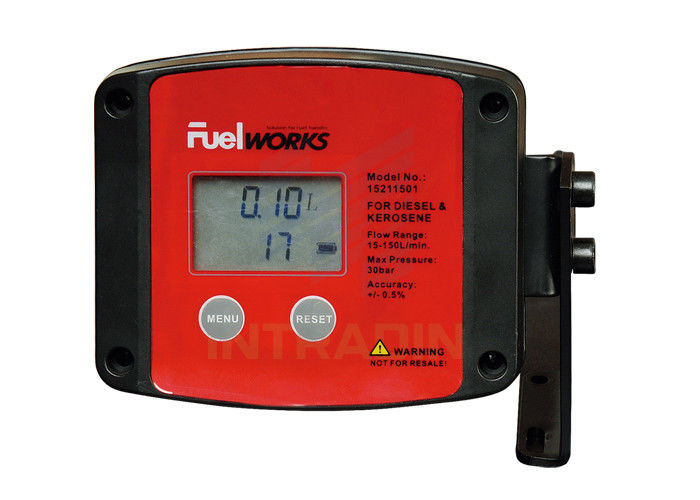

• Oval Gear Inline Fuel Flow Meter 10 - 100 LPM Flow Rate 15 Meters
Oval Gear Inline Fuel Flow Meter 10 - 100 LPM Flow Rate 15 Meters

Oval Gear Inline Fuel Flow Meter 10 - 100 LPM Flow Rate 15 Meters

Product Details:

Place of Origin: China
Brand Name: Fuelworks
Model Number: 15211005

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: 1 carton and then pallet
Delivery Time: 40 working days
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Oval Gear Inline Fuel Flow Meter Flow Rate: 3-26GPM / 10-100LPM
Inlet: 1" Outlet: 1"
Lenght Of Cord: Up To 50ft/15m Working Pressure: 435psi / 30bar
High Light:

Oval Gear Inline Fuel Flow Meter

,

Fuel Flow Meter 100 LPM

,

15m Fuel Tank Flow Meter

Product Description

10-100LPM Flow Rate Oval Gear Inline Fuel Flow Meter With 15 Meters Length Of Cord









Description:



Oval Gear Inline  Meters
•  Inline meters for connection to external receiver
•  Body with aluminum measuring chamber
•  Display is optional
•  Low battery indication
•  Different unit of measurement setting option

•  Length of cord: Up to 50ft./15M




Mechanical Fuel Meter
•  Reliable, easy to install and simple to calibrate in the field
•  Aluminium metering chamber with polybutylene nutating disk
•  Max. operating pressure: 50PSI /3.5BAR;
•  Bursting pressure: 400PSI/28BAR
•  Readout: 4-digit subtotals, 8-digital totals
  Subtotals can be set to zero, total readouts cannot



Specifications:





Item No. Flow Rate Max. Pressure Inlet / Oulet Package Dimension Weight
15211005 3-26GPM / 10-100LPM 435PSI / 30BAR 3/4" 19x14x14cm 1.5kgs
15211503 4-40GPM / 15-150LPM 435PSI / 30BAR 1" 19x14x14cm 3kgs
