• 70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities
  • 70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities
70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities

70 - 180psi Heavy Duty Air-Operated Grease Pumps For Automotive Sevice Facilities

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 17125030

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 4,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Grease Pump Drum Application: 20-30kgs / 60lbs
Pressure Ratio: 50:1 Air Inlet Pressure: 5-12bar / 70-180psi
Suction Tube Diameter: 32mm / 1.25" Max.free Flow Rate(min): 1.8kgs / 4lbs
High Light:

air operated grease pump

,

air driven grease pump

Product Description

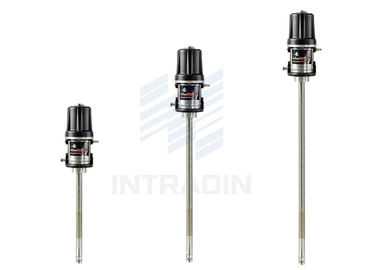

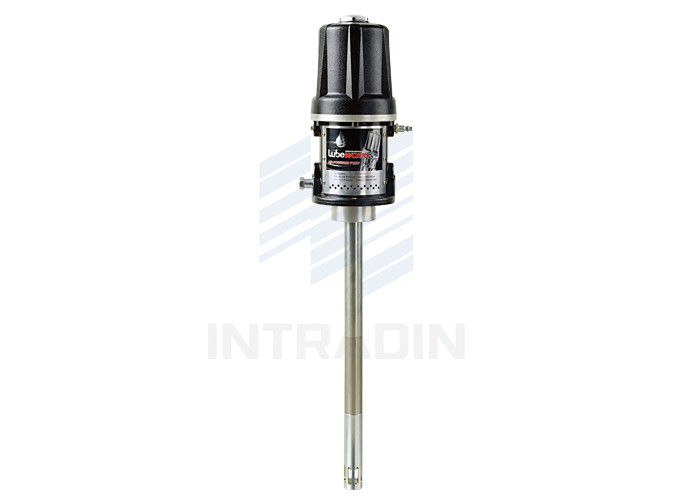

Heavy Duty 50:1 Ratio Pneumatic Grease Pump For Automotive Sevice Facilities



50:1Air operated grease pump



Specifications:



Item No. 17125030/17125032 17125050/17125052 17125060/17125062
Drum application  20-30kgs / 60lbs 50-60kgs / 120lbs 180-220kgs / 400lb
Pressure ratio 50:01:00 50:01:00 50:01:00
Air inlet pressure 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi
Max. fluid pressure  600bar / 9000psi 600bar / 9000psi 600bar / 9000psi
Air motor effective diameter 76mm/ 3" 76mm/ 3" 76mm/ 3"
Air consumption (min) @ 8bar  600L @ 8bar  600L @ 8bar  600L
@ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM
Max.free flow rate (min) 1.8kgs / 4lbs 1.8kgs / 4lbs 1.8kgs / 4lbs
Suction tube diameter 32mm / 1.25" 32mm / 1.25" 32mm / 1.25"
Suction tube length 480mm / 19" 740mm / 29" 940mm / 37"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 1/4" BSP/ 1/4" NPT Female 1/ 4" BSP/ 1/4" NPT Female 1/ 4" BSP/ 1/4" NPT Female
Weight 8kgs / 17lbs 9.4kgs / 20 lbs 10.5kgs / 22lbs
Package size 92x25x19cm 118x25x19cm 139x25x19cm





Description:



50:1 AIR-OPERATED GREASE PUMP

Designed for manufacturing or automotive service facilities!
•  50:1 ratio allows grease to be pumped up to NLGI #2
•  Double acting pump provides continous  flow operation
•  Rugged inlet cage withstands demanding shop environments
•  Full line of stationary and portable package configurations
•  High flow capability, stable function
