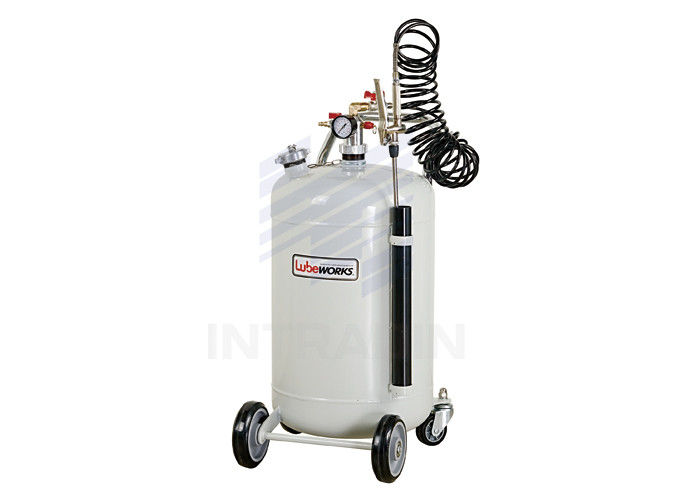

90 Liter Gravity Waste Oil Drainer Air Operated Oil Extractor

90 Liter Gravity Waste Oil Drainer  Air Operated Oil Extractor
90 Liter Gravity Waste Oil Drainer  Air Operated Oil Extractor

Large Image :  90 Liter Gravity Waste Oil Drainer Air Operated Oil Extractor

Product Details:
Place of Origin: China
Brand Name: Lubeworks
Model Number: 16206505
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 3,500pcs per month

90 Liter Gravity Waste Oil Drainer Air Operated Oil Extractor

Description
Product Name: Waste Oil Drainer Tank Capacity: 65L / 17gallon
Draining Hose Length: 2000mm / 78.7" Max. Draining Pressure: 1bar / 14.5psi
Collection Bowl Diameter: 400mm / 16" Material: Steel
High Light:

90 Liter Air Operated Oil Extractor

,

Gravity Waste Oil Drainer

,

90 Liter Waste Oil Drainer



65-90 Liter Air Operated Waste Oil Drainer To Drain By Gravity Waste Oil From Engines



Specifications:



Item No. 16206505/16206506 16206507/16206508 16209009/162090010 16209011/16209012
Tank capacity 65L / 17gallon 65L / 17gallon 90L / 24gallon 90L / 24gallon
Collection bowl capacity  18L / 4.8gallon 18L / 4.8gallon 18L / 4.8gallon 18L / 4.8gallon
Collection bowl diameter 400mm / 16" 400mm / 16" 400mm / 16" 400mm / 16"
Maximum height 1510mm / 59.4" 1610mm / 63.4" 1850mm / 72.8 1950mm / 76.8"
Minimum height  1010mm / 39.8" 1110mm / 43.7" 1150mm / 45.3" 1250mm / 49.2"
Draining hose length  2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7"
Max. draining pressure 1bar / 14.5psi 1bar / 14.5psi 1bar / 14.5psi 1bar / 14.5psi
Air inlet connection 1/4"quick plug 1/4"quick plug 1/ 4"quick plug 1/ 4"quick plug
1/4"NPT Female 1/4"NPT Female 1/ 4"NPT Female 1/ 4"NPT Female
Extension Funnel diameter **** 606mm / 23.8" **** 606mm / 23.8"
Weight 27kgs / 60lbs 29kgs / 64lbs 32kgs / 70lbs 34kgs / 75lbs
Package size 46x40x87.5cm 46x40x87.5cm / 65x15x62cm 48x44x100cm 48x44x100cm / 62x15x62cm





Description:



65L/90L AIR OPERATED WASTE OIL DRAINER
•  Suitable devices to drain, by gravity, waste oil from engines, gear boxes
and differentials of all vehicles
•  Air operated oil drainer with center mounted adjustable collecting bowl
•  Adjustable collecting bowl height to work with jack lift or servicing cock
•  Be equipped with a valve for collecting bowl to inspect drained oil before
it enters the reservoir
•  Can be equipped with a special support to allow filters to drain

WARNING: Do not use with corrosive or inflammable products
