• Goodyear 3/8-Inch 500 Feet Steel Hose Reel with Swivel Arm and Mounting Bracket 300PSI
  • Goodyear 3/8-Inch 500 Feet Steel Hose Reel with Swivel Arm and Mounting Bracket 300PSI

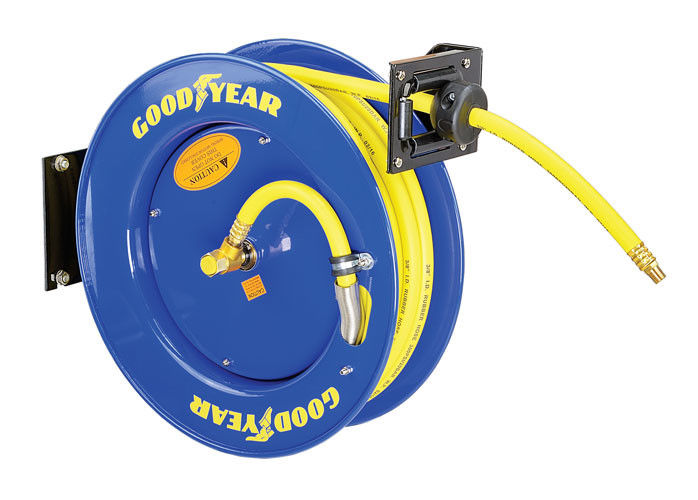

Goodyear 3/8-Inch 500 Feet Steel Hose Reel with Swivel Arm and Mounting Bracket 300PSI

Goodyear 3/8-Inch 500 Feet Steel Hose Reel with Swivel Arm and Mounting Bracket 300PSI

Product Details:

Place of Origin: China
Brand Name: Goodyear
Certification: N/A
Model Number: L815153G

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: Color Box 52*23.5*56.5cm G.W: 24.0 kgs Q'TY 20'CY:400pcs
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/months
Get Best Price Contact Now

Detail Information

Material: Steel Hose I.D.: 3/8''/9.5mm
Hose Length: 50'/15m Working Pressure: 300psi/20bar
Inlet/Outlet: 1/4'' Or 3/8'' Hose Material: SBR Rubber
High Light:

retractable hose reel

,

retractable water hose reel

Product Description

Goodyear Retractable Air/Water Hose Reel with 3/8-Inch by 50-Feet Hybrid Hose Heavy Duty Max. 300PSI Lightweight

Operation:

  1. Check reel for correct operation by slowly pulling out the hose.
  2. A "clicking" noise will be heard every half revolution of the drum.
  3. To latch the reel, pull out the hose and allow it to retract after hearing the first second or third "click".
  4. To unlatch, slowly pull out the hose until the "clicking" noise stops, then let the hose retract until the hose stop rests against the hose guide.

Installation of Hose:

  1. Securely stabilize the reel
  2. Facing the swivel fitting side of reel: Turn the drum clockwise, by hand, until the rewind spring is tight, and drum has latched.
  3. As an extra precaution while installing new hose, secure drum in the latched position
  4. Insert end of the hose through guide roller bracket, and feed through the opening in the drum flange.
  5. Use Teflon tape or pipe sealant on hose fitting threads, screw fitting into swivel and tighten.
  6. Attach hose stopper on the other end of hose, near the outlet fitting
  7. Carefully release drum latch, and slowly allow hose to wind onto the reel

Safety Precautions:



1. Make sure incoming line pressure does not exceed rated operating pressure for your model hose reel.

2. Use proper eye protection when assembling and using the hose reel.

3. Assemble the hose reel on a clean workbench.

4. Use soap and water when checking for leaks.

5. Keep children away from the work area.



Product Description:

  1. Steel construction with corrosion resistant power coating
  2. Full flow solid swivel joint
  3. Multi-position release ratchet, spring fully enclosed

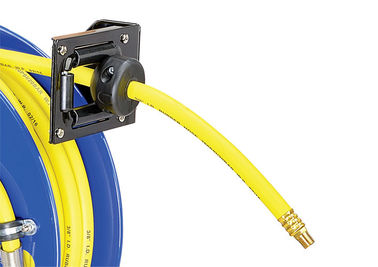

  4. Four direction non-snag rollers reduce hose wear abrasion
  5. Wall, ceiling or floor mount

General Safety Regulations:



♦ Before using this product, carefully check that it will operate properly and perform its intended function

♦ Check for damaged parts and any other conditions that may affect the operation of this product

♦ Replace damaged or worn parts immediately

♦ Do not overreach

♦ Keep proper footing and balance at all times to prevent tripping, falling, back injury, etc.

♦ Do not use the equipment when tired or under the influence of drugs, alcohol, or medication

♦ A moment of inattention while operating this equipment may result in serious personal injury





FAQ:



Q1: What is your MOQ for the hose reel?

A1: 50pcs, but small trial order acceptable.



Q2: What is the delivery time for the hose reel?

A2: Normally 30 days for 1*20'GP container.



Q3: What is the warranty for the hose reel?

A3: One year limited warranty.



Q4: Can you OEM our brand of the hose reel?

A4: Yes, brand customized.





BELIEVE US THAT WE CAN HELP YOU TO:

  • Improve the quality of products continuously
  • Save your souring & consolidation efforts
  • Be more competitive in your marketplace



Tag:steel spring driven reel,hose reel
