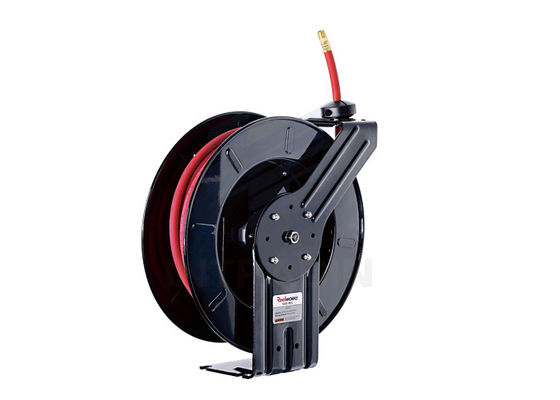

Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet

Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet
Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet
Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet

Large Image :  Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet

Product Details:
Place of Origin: China
Brand Name: Reelworks
Model Number: 808
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1pc in carton and in Pallet
Delivery Time: 40 Working Day
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/month

Heavy Gauge Steel Frame Air And Water Hose Reel With Multi - Position Locking Ratchet

Description
Product Name: Steel Air And Water Hose Reel Hose Length: 15M-20M
Working Pressure: 20Bar-276Bar Inlet / Outlet: 3/8"
Hose I.D.: 3/8" 1/4" 1/2" Hose: SBR Rubber; S.A.E.100R1Rubber Wire Braid
Material: Heavy Duty Steel Consturction Locking: Multi Position Locking Ratchet
High Light:

heavy duty water hose reel

,

spring driven hose reel

Heavy Gauge Steel Frame Air And Water Hose Reel With Adjustable guide Arm



Specification:



L808 LOW PRESSURE AIR/WATER REELS   Hose max temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
L808153 3/8" 15m 20bar 3/8" SBR Rubber 52.0x23.5x56.5cm 22.0/24.0 kgs 400 pcs
L808203 3/8" 20m 20bar 3/8" SBR Rubber 52.0x23.5x56.5cm 24.0/26.0 kgs 400 pcs
L808154 1/2" 15m 20bar 1/2" SBR Rubber 52.0x23.5x56.5cm 27.0/29.0 kgs 400 pcs
L808204 1/2" 20m 20bar 1/2" SBR Rubber 52.0x23.5x56.5cm 29.0/31.0 kgs 400 pcs



M808 MEDIUM PRESSURE WATER/OIL REELS

Hose max temperature 210˚F (100˚C).

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
M808153 3/8" 15m 155bar 3/8" S.A.E.100R1 Rubber Wire Braid 52.0x23.5x56.5cm 24.0/26.0 kgs 400 pcs
M808203 3/8" 20m 155bar 3/8" S.A.E.100R1 Rubber Wire Braid 52.0x23.5x56.5cm 26.0/28.0 kgs 400 pcs
M808154 1/2" 15m 138bar 1/2" S.A.E.100R1 Rubber Wire Braid 52.0x23.5x56.5cm 26.0/28.0 kgs 400 pcs



H808 HIGH PRESSURE GREASE/HYDRAULIC OIL REELS

Hose max temperature 210˚F (100˚C).

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
H808152 1/4" 15m 345bar 1/4" S.A.E.100R2 Rubber Wire Braid 52.0x23.5x56.5cm 24.0/26.0 kgs 400 pcs
H808202 1/4" 20m 345bar 1/4" S.A.E.100R2 Rubber Wire Braid 52.0x23.5x56.5cm 26.0/28.0 kgs 400 pcs
H808153 3/8" 15m 276bar 3/8" S.A.E.100R2 Rubber Wire Braid 52.0x23.5x56.5cm 27.0/29.0 kgs 400 pcs





Descriptions:



• Heavy gauge steel frame includes dramatically flanged edges and stiffening
ribs for lighter weight, stronger components for ease of handling and installation
• 17cm wide L-Shaped base with groove reinforcement ensures stable support
• Multi-position locking ratchet
• Adjustable guide arm
