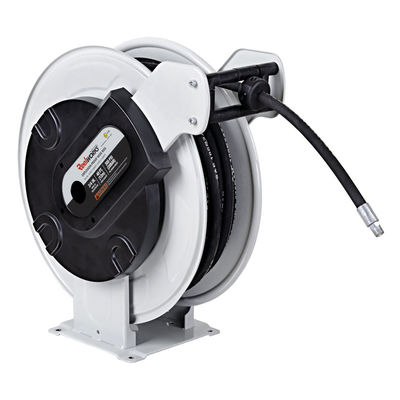

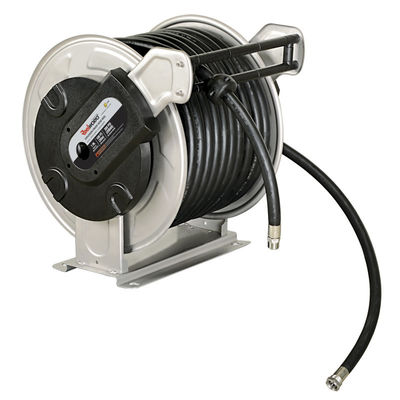

Atex Explosion Proof 50M Heavy Duty Water Hose Holder
50pcs
MOQ
negotiation
Price
Atex  Explosion Proof 50M Heavy Duty Water Hose Holder
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Reelworks
Certification: ATEX
Model Number: HR211&HR212&HR213
High Light:

ATEX heavy duty water hose holder

,

50M heavy duty water hose holder

,

Explosion Proof heavy duty hose stand

Payment & Shipping Terms
Packaging Details: 1pc in carton
Delivery Time: 50 Working Day
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/month
Specifications
Product Name: EXPLOSION PROOF HEAVY DUTY HOSE REEL
Hose Length: 15M-50M
Application: Air / / Oil / UREA/FUEL
Function: Transferring Corrosive Fluids & Chemical Liquids
Style: Double Guide Arm
Material: Carbon Steel/Stainless Steel
Certification: ATEX/ROSH/REACH
Hose: Low/medium/high Pressure
Installation: Wall; Bench ; Ceiling
Working Pressure: 150psi-4785psi
Warrnty: 5 Years
Product Description

EXPLOSION PROOF ATEX HEAVY DUTY HOSE REEL



• Intradin’s new Explosion Proof Heavy Duty Hose Reel series meet the requirements of ATEX directives for electrical and mechanical equipment materials intended for use in potentially explosive atmospheres.
• Applications
Chemical industry, Cleansing, Lube trucks and industrial vehicles, Aeronautics
Mining, Railway transport, Shipping and offshore.
• Fluids type
Gasoline, UREA/DEF, Air Water, Antifreeze, Brake fluid, Diesel Fuel, Fresh oil, Grease
Nitrogen/inflating use, Waster oil, Windshield fluid.

Specification:

LOW PRESSURE AIR / OIL / WATER REELS

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package Package Q'TY 20'CY
HR211.01 3/8" 82FT 300PSI 3/8" NPT NBR Rubber 25.5"x12.2"x26" 78.5lbs 200 pcs
HR211.02 1/2" 82FT 300PSI 1/2"NPT NBR Rubber 25.5"x12.2"x26" 91.5lbs 200 pcs
HR212.01 3/8" 100FT 300PSI 3/8" NPT NBR Rubber 24.8"x15.0"x28.5" 118lbs 200 pcs
HR212.03 3/4" 50FT 300PSI 3/8" NPT NBR Rubber 24.8"x15.0"x28.5" 1278lbs 200pcs



MEDIUM PRESSURE OIL AND SIMILAR MEDIA REELS

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
HR211.06 3/8" 82FT 2610PSI 3/8"NPT S.A.E.100R1 Wire Braid 25.5"x12.2"x26" 88lbs 200pcs
HR211.07 1/2" 65FT 3230PSI 1/2"NPT S.A.E.100R1 Wire Braid 25.5"x12.2"x26" 86lbs 200pcs



HIGH PRESSURE GREASE AND SIMILAR MEDIA REELS

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
HR211.20 3/8" 82FT 4785PSI 3/8"NPT S.A.E.100R2 Wire Braid 25.5"x12.2"x26" 96.1lbs 200pcs
HR821.27 3/8" 100FT 4785PSI 3/8"NPT S.A.E.100R2 Wire Braid 24.8"x15.0"x28.5" 138 lbs 200pcs



 LOW PRESSURE UREA/DEF REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
HR211.05 3/4" 40FT 150PSI 3/4"NPT EDPM Rubber 25.5"x12.2"x26" 79.2lbs 200pcs
HR212.06 3/4" 50FT 150PSI 3/4" EDPM Rubber 24.8"x15.0"x28.5" 127.8lbs 200pcs



LOW PRESSURE FUEL REELS   Hose maximum temperature 176˚F (80˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
HR211.03.T1.01 3/4" 40FT 150PSI 3/4" NPT NBR Rubber 25.5"x12.2"x26" 79.2lbs 200pcs
HR211.04.T1.01 1" 25FT 150PSI 1" NPT NBR Rubber 25.5"x12.2"x26" 88.2lbs 200pcs



Descriptions:


Explosion-proof equipment certified according to the European ATEX directives.
• Gasoline transferring
Specially designed and built to eliminate sources of ignition to allow
gasoline dispensing.
• Corrosion fluids application
Solutions for transferring corrosive fluids and chemical liquids.
• Stainless Steel model available
Specially designed to provide reinforced safety for demanding
industrial use in harsh environment applications.
• RoHS and REACH compliant
Meet the environmental requirements of ROHS and REACH.
