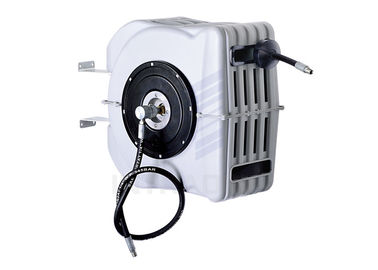

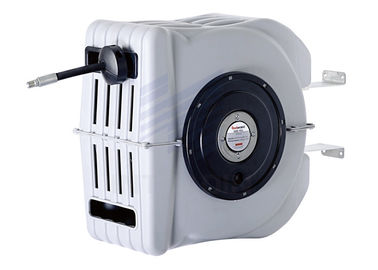

10 - 15m Air And Water Hose Reel With Adjustable Hose Stopper Mounted On Wall , Ceiling
50pcs
MOQ
negotiation
Price
10 - 15m Air And Water Hose Reel With Adjustable Hose Stopper Mounted On Wall , Ceiling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Reelworks
Model Number: 718
High Light:

heavy duty water hose reel

,

spring driven hose reel

Payment & Shipping Terms
Packaging Details: 1pc in carton and in Pallet
Delivery Time: 40 Working Day
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/month
Specifications
Product Name: Plastic Air And Water Hose Reel
Hose Length: 10-15m
Application: Air / Water
Patent: ZL200730082236.5
Hose I.D.: 3/8" ; 1/4" ; 1/2"
Hose Material: Hybrid Polymer ; SAE 100R Wire Braid
Working Pressure: 20bar-345bar
Swivel: Replace The Swivel Seal In Convenience
Product Description

Professional Plastic Spring Driven Air And Water Hose Reel With Adjustable Hos stopper



Specification:



718 SERIES HOSE REELS   Hose maximum temperature 140˚F (60˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
L718153 3/8" 15m 20bar 3/8" Hybrid polymer 50.0x26.0x45.0cm 12.9/15.1 kgs 495 pcs
L718124 1/2" 12m 20bar 1/2" Hybrid polymer 50.0x26.0x45.0cm 13.6/15.6 kgs 495 pcs





718 SERIES HOSE REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
M718123 3/8" 12m 155bar 3/8" S.A.E.100R1 Wire Braid 50.0x26.0x45.0cm 12.8/14.7 kgs 495 pcs
M718104 1/2" 10m 138bar 1/2" S.A.E.100R1 Wire Braid 50.0x26.0x45.0cm 14.3/15.6 kgs 495 pcs





718 SERIES HOSE REELS   Hose maximum temperature  210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
H718102 1/4" 10m 345bar 1/4" S.A.E.100R2 Wire Braid 50.0x26.0x45.0cm 13.4/15.2 kgs 495 pcs





Descriptions:



• Pivoting wall bracket can be easily mounted on wall, ceiling or floor
• Adjustable hose stop for convenient lead length positioning
• Replace the swivel seal in convenience
• Adjust the spring tension for ease and flexibility
