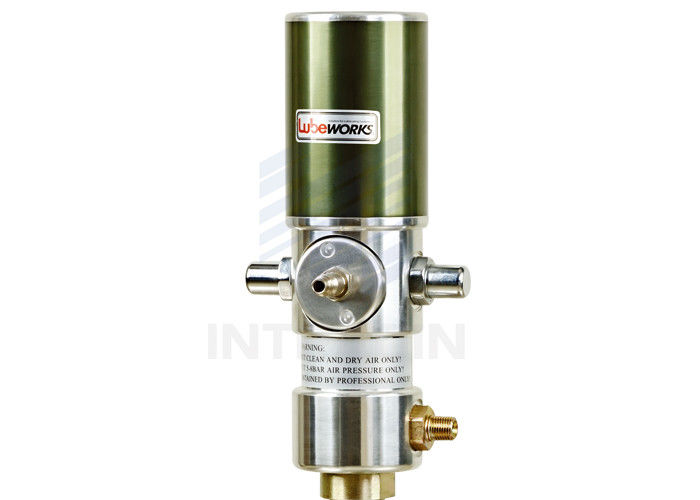

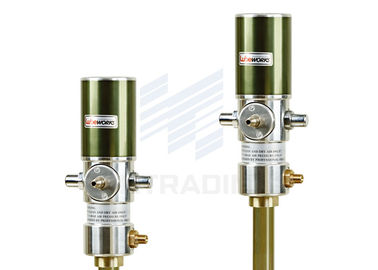

Non-corrosive Air Operated Grease Pump 20-30kgs 1/4”M Air Driven Grease Pump

China Non-corrosive Air Operated Grease Pump 20-30kgs 1/4”M Air Driven Grease Pump supplier
Non-corrosive Air Operated Grease Pump 20-30kgs 1/4”M Air Driven Grease Pump supplier Non-corrosive Air Operated Grease Pump 20-30kgs 1/4”M Air Driven Grease Pump supplier

Large Image :  Non-corrosive Air Operated Grease Pump 20-30kgs 1/4”M Air Driven Grease Pump

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 1701501

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 4,000pcs per month
Contact Now
Detailed Product Description
Product Name: Grease Pump Drum Application: 20-30kgs / 44-66lbs
Pressure Ratio: 50:1 Oil Outlet Connection: 1/4”M
Max.fluid Pressure: 5-8bar/70-115psi Max.free Flow Rate(min): 800g/1.76lbs



High Pressure Pneumatic Grease Pump For Grease Oil Dispensing Short  Long Distance



Description:



•  Typical Application: high pressure grease dispenser

•  For dispensing grease of all types short and long distance at high pressure

•  Non-corrosive design for long time use



•  Compatible with integrated lubrication system

•  Compatible with different sizes of grease drum in the market

•  Double action





Specifications:



Item No.

1701500

1701501

1701502

1701503

Drum application

13kgs / 30 lbs

20-30kgs / 44-66lbs

50-60kgs / 110-132lbs

180-220kgs /  400-484lbs

Pressure ratio

50:01:00

50:01:00

50:01:00

50:01:00

Air inlet pressure

5-8bar / 70-115psi

5-8bar / 70-115psi

5-8bar / 70-115psi

5-8bar / 70-115psi

Max. fluid pressure

400bar / 5600psi

400bar / 5600psi

400bar / 5600psi

400bar / 5600psi

Air motor effective diameter

63mm / 2.4"

63mm / 2.4"

63mm / 2.4"

63mm / 2.4"

Air consumption (min)

@ 8 bar 120L

@ 8bar 120L

@ 8bar 120L

@ 8 bar 120L



@ 115psi  4.3CFM

@ 115psi  4.3CFM

@ 115psi  4.3CFM

@115psi  4.3CFM

Max.free flow rate (min)

800g / 1.76lbs

800g / 1.76lbs

800g / 1.76lbs

800g / 1.76lbs

Suction tube diameter

30mm / 1.18"

30mm / 1.18"

30mm / 1.18"

30mm / 1.18"

Suction tube length

370mm / 14. 5"

480mm / 19"

740mm / 29"

940mm / 37"

Air inlet connection

1/4"quick plug

1/4"quick plug

1/4"quick plug

1/4"quick plug

1/4" NPT Female

1/4" NPT Female

1/4" NPT Female

1/4"NPT Female

Oil outlet connection

1/4" M

1/4" M

1/4" M

1/4" M

Weight

5kgs / 11lbs

5kgs / 11lbs

5.5kgs / 12lbs

6kgs / 13lbs

Package size

13x13x73cm

13x13x81cm

13x13x108cm

13x13x128cm
