Metal Waste Oil Drain Tank 24 Gallon With Durable Wheels / Oil Suction Machine

Metal Waste Oil Drain Tank 24 Gallon With Durable Wheels / Oil Suction Machine

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 16209006

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 3,500pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Air Operated Oil Drainer And Changer Tank Capacity: 90L / 24gallon
Air Pressure For Vacuum: 7-8bar / 100-115psi Weight: 54.7kgs / 88lbs
Suction Hose: 2000mm / 78.7" Max. Draining Capacity: 70L / 18gallon
Max. Draining Pressure: 1bar / 14.5psi Extension Funnel Diameter: 606mm / 23.8"
High Light:

pneumatic oil extractor pump

,

oil suction drainer

Product Description



Suitable Devices to Drain Air Operated Waste Oil Drainer And Changer





Description:



65L/90L 2-IN-1 WASTE OIL DRAINER AND CHANGER

•  Combination of waste oil suction/drainer
•  Extract used oil and other fluids from any vehicle using this venture-vacuum
extracting system
•  Suitable devices to drain, by gravity, waste oil from engines, gear boxes and
differentials of all vehicles
•  Vacuum-charged unit is completely portable and easy to use

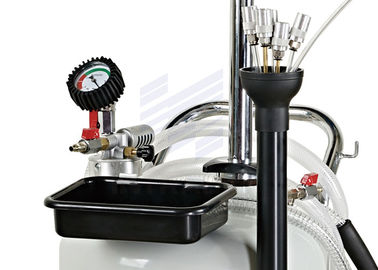

•  Includes six suction probes (metal and flexible) equipped with quick-disconnect
couplers for fluid extraction
•  Adapters for BMW and Volkswagen are also included
•  Adjustable collecting bowl height to work with jack lift or servicing cock

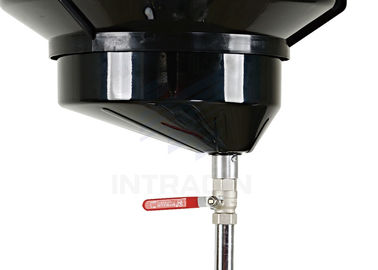

•  Be equipped with a valve for collecting bowl to inspect drained oil before it
enters the reservoir
•  Self-evacuating feature makes emptying clean and easy



Specifications:



Item No.

16106509/

16106510

16106511/

16106512

16109009/

16109010

16109011/

16109012

16209006/

16209008

Tank capacity 65L / 17gallon 65L / 17gallon 90L / 24gallon 90L / 24gallon 90L / 24gallon
Total suction capacity 42-45L / 11-12gallon 42-45L / 11-12gallon 60-70 L / 17-18gallon 60-70L / 17-18gallon ****
Air pressure for vacuum 7-8bar / 100-115psi 7-8bar / 100-115psi 7-8bar / 100-115psi 7-8bar / 100-115psi 7-8bar / 100-115psi
Depressurization time 120-150s 120-150s 150-180s 150-180s 150-180s
Suction speed 1.5-2lpm / 0.4-0.5gpm 1.5-2lpm / 0.4-0.5gpm 1.5-2lpm / 0.4-0.5gpm 1.5-2lpm / 0.4-0.5gpm 1.5-2lpm / 0.4-0.5gpm
Suction hose 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7"
Collection bowl capacity 18L / 4.8gallon 18L / 4.8Gallon 18L / 4.8gallon 18L / 4.8gallon 65L / 17gallon
Collection bowl diameter 400mm / 16" 400mm / 16" 400mm / 16" 400mm / 16" ****
Maximum height 1460mm / 57.5" 1560mm / 61.4" 1700mm / 66.9" 1800mm / 70.8" 1550mm / 6 1"
Minimum height 900mm / 35.4" 1000mm / 39.4" 1000mm / 39.4" 1100mm / 43.3" 1100mm / 43.3"
Extension funnel diameter **** 606mm / 23.8" **** 606mm / 23.8" 606mm / 23.8"
Max. draining capacity 45L / 12gallon 45L / 12gallon 70L / 18gallon 70L / 18"allon 70L / 18gallon
Max. draining pressure 1bar / 14.5psi 1bar / 14.5psi 1bar / 14.5psi 1bar / 14.5psi 1bar / 14.5psi
Draining hose length 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7" 2000mm / 78.7"
Air inlet connection 1/4"quick plug 1/4"quick plug 1/4"quick plug 1/4"quick plug 1/4"quick plug
  1/4"NPT Female 1/4"NPT Female 1/4"NPT Female 1/4"NPT Female 1/4"NPT Female
Weight 35kgs / 77lbs 37kgs / 82lbs 38kgs / 84lbs 40kgs / 88lbs 54.7kgs / 88lbs
Package size 46x42x87.5cm 46x42x87.5cm 48x44x100cm 48x44x100cm 53x51x86cm
  62x14x62cm   62x15x62cm 85x69x30cm
        7x15x132cm
Suction speed: with oil at 70-80˚C, probes 6mm
