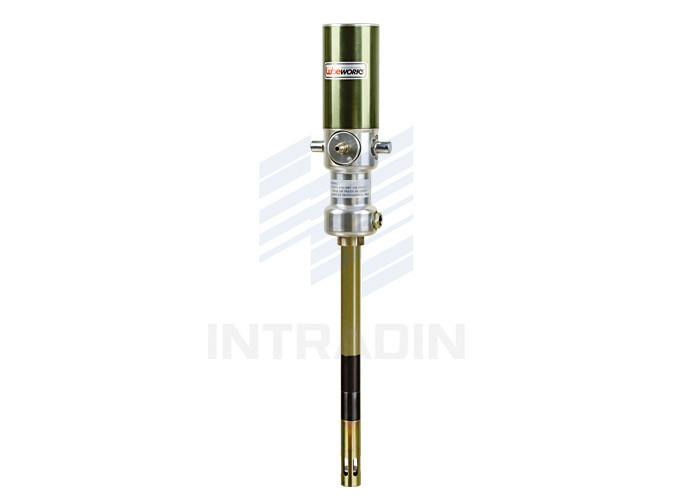

Anti-Corrosion Air Driven Grease Pump Double Action High Viscosity Drum Pumps

Anti-Corrosion Air Driven Grease Pump Double Action High Viscosity Drum Pumps

Product Details:

Place of Origin: China
Brand Name: Lubeworks
Model Number: 17116500

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1 piece in carton and pallet
Delivery Time: 40 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 4,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Grease Pump Drum Application: 13kgs / 30lbs
Pressure Ratio: 65:1 Air Consumption (min): @ 8bar 600L
Oil Outlet Connection: 3/8" Female Package: 1 Piece
High Light:

air powered grease pump

,

air driven grease pump

Product Description



Transferring Grease And High Viscosity Oil Pneumatic Grease Pump With Double Action



Specifications:



Item No. 17116500/17116502 17116530/17116532 17116550/17116552 17116560/17116562
Drum application  13kgs / 30lbs 20-30kgs / 44-66lbs 50-60kgs / 110-132lbs 180-220kgs / 400-484lbs
Pressure ratio 65:01:00 65:01:00 65:01:00 65:01:00
Air inlet pressure 5-8bar / 70-115psi 5-8bar / 70-115psi 5-8bar / 70-115psi 5-8bar / 70-115psi
Max. fluid pressure  520bar / 7280psi 520ar / 7280psi 520bar / 7280psi 520bar / 7280psi
Air motor effective diameter 70mm / 2.75" 70mm / 2.75" 70mm / 2.75" 70mm / 2.75"
Air consumption (min)  @ 8bar 600L @ 8bar  600L @ 8bar  600L @ 8bar  600L
Max.free flow rate (min) 1000g / 2.2lbs 1000g / 2.2lbs 1000g / 2.2lbs 1000g / 2.2lbs
Suction tube diameter 30mm / 1.18" 30mm / 1.18" 30mm/1.18" 30mm/1.18"
Suction tube length 370mm / 14.5" 480mm / 19" 740mm / 29" 940mm / 37"
Air inlet connection 1/ 4"quick plug 1/ 4" quick plug 1/ 4" quick plug 1/ 4" quick plug
1/ 4"NPT Female  1/ 4" NPT Female  1/ 4" NPT Female  1/ 4" NPT Female
Oil outlet connection 3/8" F 3/8" F 3/8" F 3/8" F
Weight 4.75kgs / 10.5lbs 5.0kgs / 11.0lbs 5.5kgs / 12.0lbs 6.0kgs / 13.2lbs
Package size 13x13x90cm 13x13x90cm 13x13x117cm 13x13x137cm





Description:



65:1 AIR-OPERATED GREASE PUMP

•  Ideal for transferring grease and high viscosity oil
•  Anti corrosion treatments reduce internal friction & limit wear over time
•  Compatible with different sizes of grease drum in the market
•  Double action guarantees  the delivery of  continuos and constant flow
•  Air inlet connection: 1/4'' Quick plug /1/4'' NPT  Female
•  Air consumption: 600L/M(115psi 9CFM)
