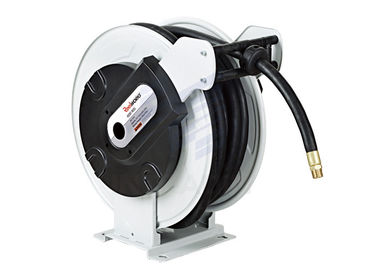

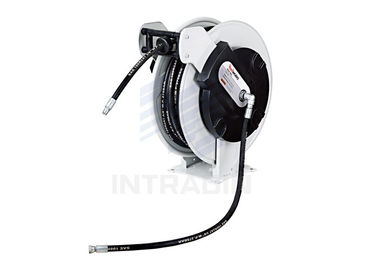

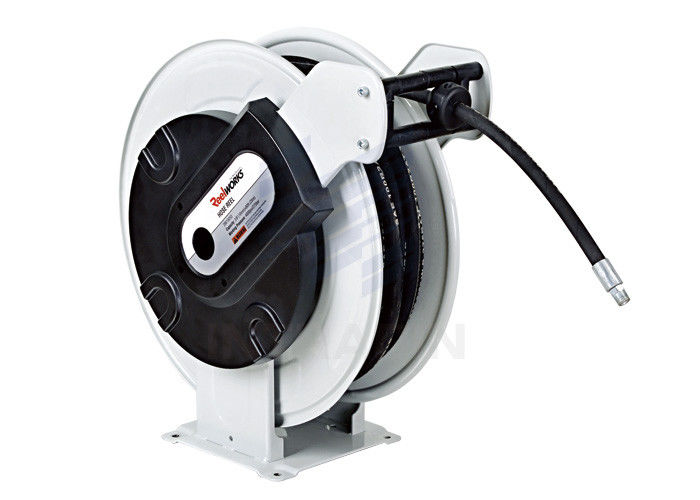

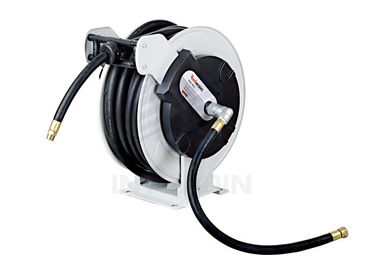

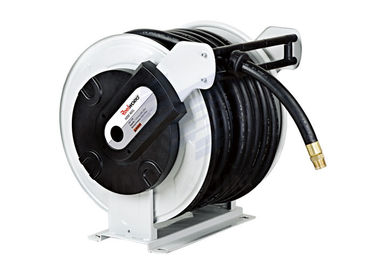

Vehicle / Workshop Air And Water Hose Reel 25 Meter Hose Length , Oil  Hose Reels

Vehicle / Workshop Air And Water Hose Reel 25 Meter Hose Length , Oil Hose Reels

Product Details:

Place of Origin: China
Brand Name: Reelworks
Model Number: 286

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1pc in carton and in Pallet
Delivery Time: 40 Working Day
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Industrial Air And Water Hose Reel Hose Length: 8M-25M
Application: Air / Water / Oil / Grease Patent: 201330376507.3
Hose I.D.: 3/8" ; 3/4" ; 1/2"; 1" Flange: Reinforced Steel Flange
Double Arm: Double Arm Structure For Stability Hose: 1.2 Meter Lead In Supply Hose Included
Installation: Wall; Bench ; Ceiling Working Pressure: 20bar-280bar
Warrnty: 5 Years
High Light:

heavy duty water hose reel

,

spring driven hose reel

Product Description

Vehicle / Workshop Air And Water Hose Reel 25 Meter Hose Length



Specification:



2861 LOW PRESSURE AIR/WATER HOSE REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package Package Q'TY 20'CY
28617253 3/8" 25m 20bar 3/8" NBR Rubber 61.0x29.7x69.1cm 61.0x29.7x69.1cm 200 pcs
28617254 1/2" 25m 20bar 1/2" NBR Rubber 61.0x29.7x69.1cm 61.0x29.7x69.1cm 200 pcs
28617126 3/4" 12m 20bar 3/4" NBR Rubber 61.0x29.7x69.1cm 61.0x29.7x69.1cm 200 pcs
28617088 1" 8m 20bar 1" NBR Rubber 61.0x29.7x69.1cm 61.0x29.7x69.1cm 200 pcs



2861 MEDIUM PRESSURE WATER/OIL REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
28618253 3/8" 25m 155bar 3/8" S.A.E.100R1 Wire Braid 61.0x29.7x69.1cm 37.2/39.9 kgs 200 pcs
28618254 1/2" 25m 140bar 1/2" S.A.E.100R1 Wire Braid 61.0x29.7x69.1cm 40.8/43.9 kgs 200 pcs



2861 HIGH PRESSURE GREASE REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
28619253 3/8" 25m 280bar 3/8" S.A.E.100R2 Wire Braid 61.0x29.7x69.1cm 40.8/43.9 kgs 200 pcs



2862 LOW PRESSURE AIR/WATER HOSE REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
28627303 3/8" 30m 20bar 3/8" NBR Rubber 61.0x34.7x60.8cm 42.6/53.5 kgs 170 pcs
28627304 1/2" 30m 20bar 1/2" NBR Rubber 61.0x34.7x60.8cm 46.7/57.6 kgs 170 pcs
28627206 3/4" 20m 20bar 3/4" NBR Rubber 61.0x34.7x60.8cm 48.9/59.8 kgs 170 pcs
28627158 1" 15m 20bar 1" NBR Rubber 61.0x34.7x60.8cm 52.2/63.0 kgs 170 pcs



2862 MEDIUM PRESSURE WATER/OIL REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
28628303 3/8" 30m 155bar 3/8" S.A.E.100R1 Wire Braid 61.0x34.7x60.8cm 45.8/57.1 kgs 170 pcs
28628304 1/2" 30m 140bar 1/2" S.A.E.100R1 Wire Braid 61.0x34.7x60.8cm 48.9/60.8 kgs 170 pcs
28628206 3/4" 20m 86bar 3/4" S.A.E.100R1 Wire Braid 61.0x34.7x60.8cm 50.8/61.6 kgs 170 pcs
28628158 1" 15m 70bar 1" S.A.E.100R1 Wire Braid 61.0x34.7x60.8cm 53.9/64.8 kgs 170 pcs



2862 HIGH PRESSURE GREASE REELS   Hose maximum temperature 210˚F (100˚C).
MODEL Hose I.D. Hose I.D. Working Pressure Inlet/Outlet Hose Material Package Package Q'TY 20'CY
28629303 3/8" 3/8" 280bar 3/8" S.A.E.100R2 Wire Braid 61.0x34.7x60.8cm 61.0x34.7x60.8cm 170 pcs

2863 LOW PRESSURE AIR/WATER HOSE REELS

Hose maximum temperature 210˚F (100˚C).

MODEL Hose I.D. Hose Length Working Pressure Inlet/Outlet Hose Material Package N.W/G.W Q'TY 20'CY
28637504 1/2" 50m 20bar 1/2" NBR Rubber 61.0x52.7x60.8cm 72.6/85.3 kgs 110 pcs
28637406 3/4" 40m 20bar 3/4" NBR Rubber 61.0x52.7x60.8cm 73.9/87.1 kgs 110 pcs
28637308 1" 30m 20bar 1" NBR Rubber 61.0x52.7x60.8cm 68.9/82.1 kgs 110 pcs





Descriptions:



• Perfect for application in industries, vehicle repair & maintenance workshops
• Heavy duty designs were selected to meet the demands of an industrial grade
reel for continuous, trouble-free operation

Type of Fluid to be Delivered and Pressure of Fluid
Air-Water 20bar DEF 10bar
Oil and similar products 155bar DEF 10bar
Oil and similar products 155bar Oil 400bar
Diesel fuel 10bar Welding 20bar



• Medium pressure hose reel are furnished standard with S.A.E.100R1 at one
wire braid hose suitable for air, water or oil application in auto and truck
maintenance facilities
• High pressure reel are furnished standard with S.A.E.100R2 at two wire
braid hose suitable for grease application
• The adjustable arms allow floor, wall or ceiling (for 2861 series) can be easily
reposition according to needs
• The hose reel drum is sturdy & practical with stiffening ribs & flange edges
